MARINE – M2XCH (NOFI)
HFFR SCREENED FLEX POWER CABLE

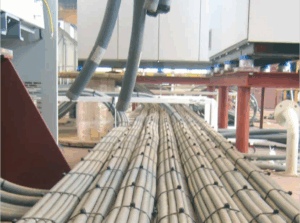

Due to its’ overall screen the electromagnetic interference is minimized making this cable ideal for fixed installations in various electromechanical and electronic equipment. Common applications include motors and frequency converters that control low voltage AC drives on ships
SPECIFICATIONS
| Nominal Voltage: | 0.6 / 1 kV (1.2)kV |
| Test Voltage: | 3,5kV |
| Bending Radius (fixed) Rated: | 6 x D |
| Working Temperature Min: | -40°C / + 90°C |
| Conductor: | Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request) |
| Insulation: | Cross linked polyethylene compound (XLPE). |
| Insulation Covering: | Seperation Foil. |
| Screen: | Electrolytic copper braided screen (90% coverage) |
| Outer sheath: | Halogen-free, flame retardant, UV resistant, polyolefin based compound (SHF1). |
Construction – IEC 60092 / 353
Tests And Material – IEC 60092 / 350-360
Halogen Content: IEC 60754 / 1-2
Smoke Emission – IEC 61034 / 1-2 (DIN EN 50268 / 1-2)
Ozone Resistance Shielding – IEC 60811 / 403
SOLD IN FULL DRUMS OR CUT TO SIZE
Orders supplied in full drums or cut to your specification at NO extra cost
