DIODES
Stud types and capsules
Our comprehensive range of rectifier diodes offers class leading performance and reliability. Devices with blocking voltages from 400V up to 6kV are available making them ideal for applications with line voltages up to 2kV. Optimised to offer low conduction losses, these devices are ideally suited to line frequency applications including input rectifiers for variable speed drives, traction converters,
trackside substations, welding and DC power supplies. Featuring compression bonded, alloyed Silicon wafer construction, these devices feature low thermal impedance and high overload capacity and are designed to survive even the most arduous applications.
| Stock Code | IT @ AVE 55 °C | Vrrm | Case Style | Case Size | Tail |
|---|---|---|---|---|---|

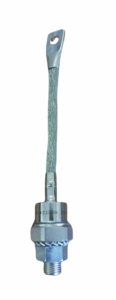

| W06285SA080SAB | 628 | 800 | Stud | 3/4′ unf | Yes |
| W0628SA160SAB | 628 | 1600 | Stud | 3/4’unf | Yes |
| W0735SA040SAB | 735 | 400 | Stud | 3/4’unf | Yes |

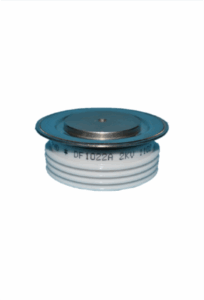

| W0944WC150 | 944 | 1500 | Capsule | 42 x 41mm | – |
| W1748LC180 | 1748 | 1800 | Capsule | 58x26mm | – |
| W1263YC250 | 1263 | 2500 | Capsule | 42x41mm | – |
| W2052NC400 | 2050 | 4000 | Capsule | 74x26mm | – |
| W2058LC020 | 2058 | 200 | Capsule | 58x26mm | – |
| W2416NC250 | 2500 | 2500 | Capsule | 74x26mm | – |
| W2899MC480 | 2899 | 4800 | Capdule | 74x26mm | – |
| W3270NC080 | 3270 | 800 | Capsule | 74x26mm | – |
| W4534N020 | 4534 | 200 | Capsule | 74x26mm | – |
| W4693QK080 | 4693 | 800 | Capsule | 58x14mm | – |
| W5696VC020C | 5696 | 200 | Capsule | 102x33mm | – |
| Stock Code | IT @ AVE 55 °C | Vrrm | Case Style | Case Size | Tail |
|---|---|---|---|---|---|
| D16A(K) 1K6VC | 16 | 1600 | Stud | 10-32″unf | No |
| DA25A(K) 1K6VC | 25 | 1600 | Stud | 10-32″unf | No |

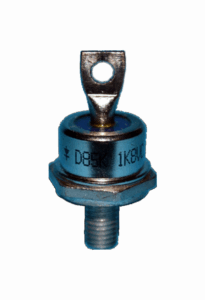

| D85A(K) 1K2VC | 85 | 1200 | Stud | 1/4″unf | No |

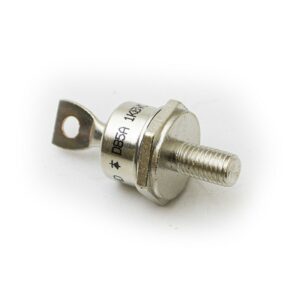

| D85A(K) 1K8VC | 85 | 1800 | Stud | 1/4″unf | No |
| D85A(K) 1K6VM | 85 | 1600 | Stud | Metric M8x1.5mm | No |
FAST & SOFT RECOVERY DIODES
Fast Recovery Diodes are an essential complement to any switching device and are more often than not the limiting factor in the design and performance of modern power converters. To address the needs of our customers, we have developed an unparalleled range of Fast Recovery Diodes. These diodes are available with blocking voltages up to 6 kV making them suitable for operation with DC link voltages up to 3.3 kV and average current ratings to 4 kA depending upon type. The devices utilise compression bonding along with both alloyed and
floating silicon technologies to deliver robust devices that you can rely on in demanding applications
| Stock Code | IT @ AVE 55 °C | Vrrm | Case Style | Case Size | Tail |
|---|---|---|---|---|---|
| M0437WC140 | 437 | 1400 | Capsule | 42x14mm | 3.0 |
| M0859LC120 | 859 | 1200 | Capsule | 58x26mm | 3.0 |
| M1022LC180 | 1022 | 1800 | Capsule | 58x26mm | 3.0 |
